Shivam is the leading manufacturer of PCC panels (Power Control Centre) in India, which are used for diverse industrial applications and provide reliable and effective service. These panels are manufactured as per client's specifications and requirements which very well meet with the industry demands. Power Control Centre is considered to be the heart of an electrical system in any industry. Therefore it shall offer users long term reliability, safety, low maintenance & testing time. Shivam offers state of art PCC panels, manufactured by employing modern engineering practices with consideration of safety & reliability main aspects of this series. It has got numerous added features which were incorporated with the help of in house product analysis and continuous field feedback. These PCCs are manufactured as per latest international standards link IEC439, EN60934, and IS8623 etc.
| Power Control Centers | |
| Power Control Centre is used for distribution and control of various power source used in industry. Normally Power Control Centers is installed near power source hence fault level is high. It is designed to suit fault level of 50KA or 65 KA for 1 sec. Busbar system in Power Control Centers are designed to suit the fault level as well as temperature rise to 40°c above ambient. Ample space is provided for cable termination. Various protections viz short circuit; overload, earth fault, under voltage etc are provided to protect source and equipment. | |
| Type | Fixed & Draw out |
| Protection class | IP42 / IP 54 / IP 55 – Optional |
| MOC | CRCA 10 / 12 / 14 / 16 Gauge as required. Modular construction with wide choice of compartment size |
| Rated Insulator Voltage | 600 V, 50 HZ, 3 phase, 4wire |
| Rated Operator Voltage | 415V_+ 10% |
| Rated Impulse withstand V | 8-KV |
| Rated current | 1000, 1250A, 1600A,2000A, 2500A, 3000A,4000A, 5000A, 6300A |
| Short circuit level | STD 50 KA 1 sec Optional 65 KA 1 sec |
| Ambient Temperature | 50°c with Temp rise 40°c degree over ambient under ideal condition |
| Busbar support | SMC / DMC |
| Busbar | Aluminum / Copper, Electrolytic grade |
| Standard | IS 8623.DT |
| Bus chamber | With safety barrier |
| Cable chamber | Ample space for cabling with supports |
| Entry | Top or Bottom |

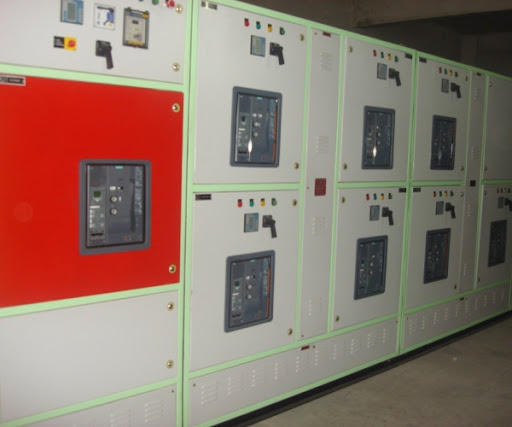

- Incomer ACB is assembled in single tier. However, up to 1600A OUTGOING ACBs can be assembled in TWO Tier arrangements.
- Similarly, 630A MCCB/FSU is accommodated in 3 compartments per bay, 250/400A feeders in 4 compartments/bays.
- In TWO TEAR ACB FEEDER, the outgoing ACB links are made of different in length for easy cable termination, depending on cable incoming. Also for bottom ACB, vertical dropper is taken for ACB bus bar I/C Connection.
- Rear Side of the panel is divided into two sections, first to accommodate vertical Bus bar dropper with a hinged door fabricated with perforated CRCA SHEET in between for a perfect combination of shrouding with the facility of heat dissipation & visibility.
- Power wiring is done with colored flexible, copper multi stranded wires from leading manufacturers.
- A perfect compartmentalized construction where the partition sheet goes till EXTREME END OF REAR PANEL.
- Spacious arrangement is made for cable termination ensuring comfortable operation & easy maintenance.
- Metallic/Transparent barriers are provided, within the cubicle for prevention of human contract with live part accidentally.
- Provision of double door at rear of the panel.
- Panels are very sleek and aesthetics is excellent.
- Each panel is provided with plastic drawing pocket to house relevant drawings.
- Construction facilities modification, retrofitting, extensibility in minimum possible time.
- Provision of additional door flap over steel lock causing further barrier to unauthorized operation and excellent aesthetics.
- Specially designed concealed profile of neoprene is used for gasketing to ensure dust protection.
- Use of quarter turnkey flush type steel door locks for convenient operation.
- HIGH TENSILE BOLT & CONICAL WASHERS for Busbar connection.
- Perforated sheet shroud to main horizontal bus bar chamber.
- Phase sequence meter is provided.
- Every bay is provided space heater, thermostat & backup protection for anti-condensation.
- Cubicles having controls are equipped with lamp & socket.
- Two nos. of power socket including MCB/fuses are provided to avoid undesired unsafe wiretapping from bus bar (as an option.)

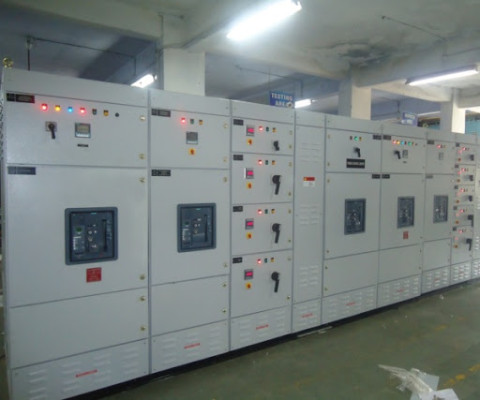

We have a wide range of PCC Panels from 630A to 6300A to match every user’s requirement in any industry.
- Compact, safe and reliable.
- Type tested assemblies offering highest reliability.
- For every rated current range, optimum connection conditions for cables and bus bars.
- Separate function compartments consisting of a switching device, auxiliary equipment and a cable connection compartment for safety.
- User friendly
- Free choice of the supply direction without any sacrifices in terms of technical specifications.
- High short-time current carrying capacity for time-graded short-circuit protection (up to 1 second) assures reliable operation of the switchboard without being affected by short-circuit.
