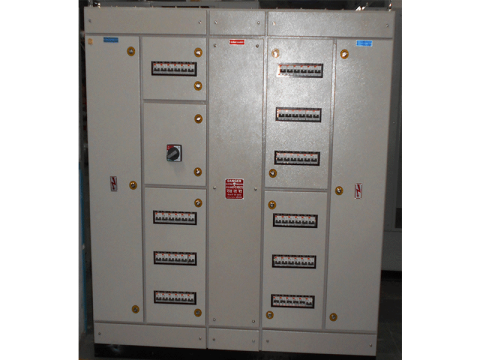

We are offering a wide range of power distribution board (PDB) that are precision designed for the power distribution in different sections of an industry, big building, etc. where only short circuit protection and overload protection are required. These protective devices can be fitted with different protective relays which can trip the CB against various types of faults. Power Distribution Panels are used for distribution of power on down streams. Since it is located at downstream fault level is normally lower about 20 to 35 KA. Normally it is designed to carry current up to 800A. Advantage of using Power Distribution Panel is to clear fault locally hence it does not affect Upstream Switchgear.

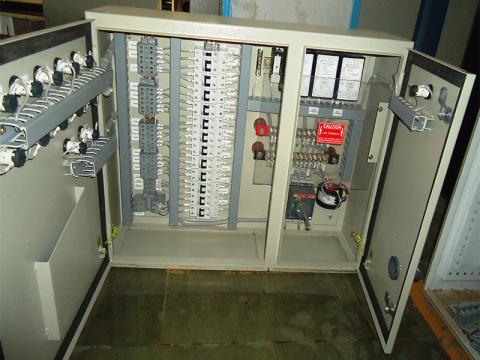

Power Distribution Panels
| Type | Fixed floor mounted / Wall mounted ACB OR MCCB. |
| Protection class | IP42 / IP 54 / IP 55 – Optional |
| Material of Construction | CRCA 14 / 16 gauge as required, modular construction, interchangeability of compartment |
| Rated voltage | 440 / 415 V 50 Hz |
| Rated current | 800 / 600 A |
| Short circuit level | 35 / 50 KA |
| Enclosure type | Indoor / Outdoor |
| Busbar support | SMC/DMC |
| Busbar | Aluminium/Copper |
| Standard | IS 8623 |
| Bus chamber | With safety barrier |
| Cable chamber | Ample Space for Cabling |
| Entry | Top or Bottom |
